Case Report

Total pancreatectomy for cholangiocarcinoma of the distal common bile duct associated with lipomatous pseudohypertrophy of pancreas
Subani Priyangika Jayatunge1, Gayana Mahendra2, Sajith Siyabalapitiya3, Rohan Chaminda Siriwardana4, Chandika Liyanage4
1MBBS, Trainee, Hepato-Pancreatico-Biliary Unit, North Colombo Teaching Hospital, Ragama, Sri Lanka.
2MBBS, Dip.Path, MD Hist.Path, Consultant Histopathologist, Department of Pathology, Faculty of Medicine, Ragama, Sri Lanka.
3MBBS, MD, MRCP, Counsultant Endocrinologist, North Colombo Teaching Hospital, Ragama, Sri Lanka.
4MBBS, MS, MRCS, Consultant GI and Hepato-Pancreatico-Biliary Surgeon, North Colombo Teaching Hospital, Ragama, Sri Lanka.

Article ID: 100031IJHPDSJ2015
doi:10.5348/ijhpd-2015-31-CR-6

Address correspondence to:
Dona Subani Priyangika Jayatunge
19/2 Rajagaha Mawatha
Kanuwana, Kurunduwaththa
Ja-ela
Sri Lanka
Phone: 0094 0774612926
Fax: 0094 0112958337

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar article in Pumed] [Similar article in Google Scholar]

How to cite this article:
Jayatunge SP, Mahendra G, Siyabalapitiya SS, Siriwardana RC, Liyanage C. Total pancreatectomy for cholangiocarcinoma of the distal common bile duct associated with lipomatous pseudohypertrophy of pancreas. Int J Hepatobiliary Pancreat Dis 2015;5:30–34.


Abstract
Introduction: Fatty replacement of the exocrine pancreas also known as lipomatosis, adipose atrophy or lipomatous pseudohypertrophy is a well recognize benign condition. This fatty infiltration can occur either focally or involving the whole pancreas.
Case Report: We report a rare case of lipomatous pseudohypertrophy of the pancreas associated with cholangiocarcinoma of the distal common bile duct (CBD). A 51-year-old female presented to our unit with a history of obstructive jaundice. Radiological imaging suggested a cholangiocarcinoma of the distal CBD with pancreatic lipomatosis, without any clinical evidence of exocrine or endocrine dysfunction. She underwent a radical bile duct excision and a total pancreatectomy. Histology revealed lipomatosis of the pancreatic body and tail with sparse pancreatic tissue adjacent to the tumor. After an uneventful recovery, she was started on lifelong insulin and pancreatic enzyme supplements. Even though pathogenesis of pancreatic lipomatosis remains controversial, it is most likely due to obstruction of the pancreatic duct in this presentation.
Conclusion: It is import to undertake total pancreatectomy for this dual presentation with specialized endocrinological support in the stormy postoperative period.

Keywords: Cholangiocarcinoma, Lipomatous pseudohypertrophy of the pancreas, Total pancreatectomy


Introduction

Fatty replacement of the exocrine pancreas also known as lipomatosis, adipose atrophy or lipomatous pseudohypertrophy is a well recognize benign condition [1]. This fatty infiltration can occur either focally or involving the whole pancreas. Focal fatty infiltration is commonly seen in the obese and elderly and it is the most common degenerative lesion involving the pancreas [2].


Case Report

A 51-year-old female presented to the hepatobiliary department of the North Colombo Teaching Hospital with a one-month history of intermittent fever, epigastric pain and features suggestive of obstructive jaundice. Liver biochemistry confirmed obstructive jaundice. (Bilirubin: Total 16, 8 mg/dl; direct 7.6 mg/dl, alkaline Phosphatase (ALP) 4772IU/l, AST 235 IU/l, ALT 155 IU/l.) with elevated Carbohydrate antigen 19.9 ( CA19.9) of 322, 630 IU/ml).

Abdominal ultrasonography, computed tomography(CT) and magnetic resonance imaging (MRI) revealed markedly dilated intrahepatic bile ducts and common bile duct (CBD diameter 2 cm), associated with narrowing of the distal end of the common bile duct with thickening suggestive of distal cholangiocarcinoma. Her main pancreatic duct was dilated but the CT scan could not visualize any pancreatic tissue (Figure 1). With the above investigations she was diagnosed of having a distal CBD cholangiocarcinoma associated with pancreatic lipomatosis.

The patient had no significant comorbidities including diabetes and had no features of chronic malabsorption, suggestive of endocrine or exocrine pancreatic dysfunction.

After discussion at the hepato-pancreato-biliary (HPB) multidisciplinary meeting, she underwent a radical bile duct excision and a total pancreatectomy. At surgery the pancreas could not be visualized and was found to have been replaced with fatty tissue. During the post operative period she was managed in the high dependency unit with stringent blood sugar control with insulin infusion and pancreatic enzyme supplements.

The specimen included the gallbladder, complete extra-hepatic biliary tree, 14 lymph nodes , duodenum and the fatty tissue in the pancreatic bed (Figure 2). The histological analysis of the specimen confirmed adenocarcinoma of the distal CBD, predominantly of biliary type with foci of gastric foveolar type and high grade biliary intraepithelial neoplasia in the common bile duct. The tumor infiltrated the pancreas, duodenum and retro-peritoneal fatty tissue with vascular and perineural invasion. Six out of the fourteen regional lymph nodes showed tumor metastasis giving the tumor stage as pT3NIMx. The histology of the pancreas revealed mature fatty tissue containing aggregates of pancreatic endocrine cells with prominent neural bundles. Almost the total pancreas was replaced by fat except for a few areas in the region of the head. The exocrine elements were completely absent (Figure 3). There was no evidence of a neoplasm of the pancreas and features were compatible with diffuse involved pancreatic lipomatosis of the body and tail (Figure 4).

The patients had an uneventful recovery and was discharged on post operative day 14 with a management plan by the endocrinologist which included 12 units of mixtard insulin in the morning, 6 units of soluble insulin at evening and pancreatic enzyme supplementation. She was started on adjuvant gemcitabine based chemotherapy once her blood sugar control stabilized. After one year following surgery patient has successfully completed her six months of chemotherapy and free of tumour recurrence.


Cursor on image to zoom/Click text to open image
Figure 1: Computed Tomography in this patient reveals dilated pancreatic duct containing multiple calculi with atrophy of pancreatic tissue (marked A).



Cursor on image to zoom/Click text to open image
Figure 2: Image of the resected surgical specimen (A: Lipomatosis pancreas, B: gallbladder, C: distal stomach , D: Duodenum).



Cursor on image to zoom/Click text to open image
Figure 3: Microscopic image of body of the pancreas demonstrating clusters of endocrine cells in a fatty background. There is no exocrine element of the pancreas identified.



Cursor on image to zoom/Click text to open image

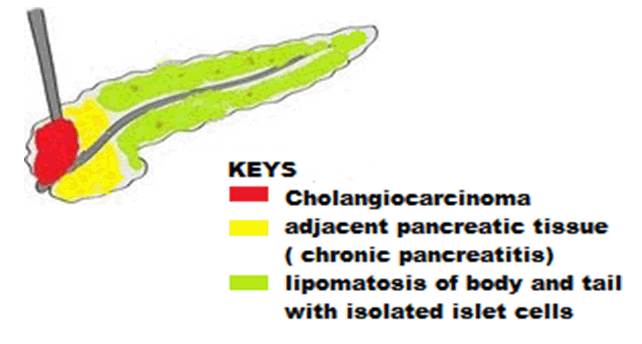

Figure 4: Diagram of the pancreas illustrating the macroscopic the distribution of pancreatic lipomatosis



Discussion

Diffuse lipomatosis or lipomatous pseudohypertrophy (LiPH) of the pancreas is a rare presentation with an uncertain aetiology. LiPH of the pancreas was first described by Hantelmann in 1931 [3]. It is characterize by

  1. Increase in the size and weight of pancreas
  2. Almost complete absence of pancreatic exocrine tissue due to pathological replacement with adipose tissue
  3. Preservation of the system of duct and islets of Langerhans [3] [4] [5].

Among several cases reported of LiPH of pancreas, the sites of involvement of lipomatosis were the entire pancreas, body and pancreatic tail, pancreatic head and uncinate. The involvement of the entire pancreas was most commonly observed [5].

This disease entity is reported to be associated with viral infections [3], chronic hepatic disease [3], congenital abnormalities such as Shwachman-Diamond syndrome and cystic fibrosis [6]. Diabetes mellitus, steroid therapy, Cushing's syndrome, hemochromatosis, hereditary and chronic pancreatitis have also been reported to be related to diffuse fatty replacement of pancreas [6] [7]. Though the mechanism is controversial, obstruction of the main pancreatic duct may also lead to fatty replacement of the distal portion of the pancreas [8]. The stages of pancreatic lipomatosis have been described as diffuse type, head-nodular type and tail-nodular type.

The clinical symptoms of pancreatic lipomatosis depend on the degree of fatty infiltration of the pancreas [6] . Patients with small focal fatty infiltrations are usually asymptomatic, however with extensive pancreatic lipomatosis the patients may present with atypical abdominal pain, malabsorption and diabetes mellitus due to exocrine and endocrine dysfunction [1] [6] [7].

Pancreatic lipomatosis is visible on abdominal sonography, CT and MRI. An increase in the echogenicity of the pancreas is noted on abdominal sonography and the CT shows more specific fat density in the pancreas. In both short and long TR images MRI reveals a variable sized pancreas with signal intensity [7] .

In this patient the aetiology was most likely related to obstruction of the main pancreatic duct in chronic pancreatitis causing lipomatosis. She was found to have diffuse pancreatic lipomatosis of the pancreatic body and tail with few spared areas in the head. She had satisfactory compensatory function from the tissues in the pancreatic head and the scattered endocrine elements in the fat tissue in lipomatosis pancreas.

As she had a distal cholangiocarcinoma she required a Whipple procedure, and due to the absence of the pancreas a "total pancreatectomy" had to be performed to include all areas of the pancreas. This was because there was no pancreas tissue for reconstruction.


Conclusion

It is extremely rare that distal cholangiocarcinoma is associated with pancreatic lipomatous pseudo-hypertrophy. We report this to enlighten the readership of radiological and histological diagnosis of pancreatic LiPH and to highlight the need of a total pancreatectomy for this combination. It is important to undertake this procedure at a specialized centre with support from an endocrinologist to manage the stormy postoperative period. Since it will be a lifelong replacement for patient, it is important to educate the patient of the life style change and evaluate if it is a suitable procedure for the particular individual.


References
  1. Anand R, Narula MK, Chaudhary V, Agrawal R. Total pancreatic lipomatosis with malabsorption syndrome. Indian J Endocrinol Metab 2011 Jan;15(1):51–3.   [CrossRef]   [Pubmed]    Back to citation no. 1
  2. Patel S, Bellon EM, Haaga J, Park CH. Fat replacement of the exocrine pancreas. AJR Am J Roentgenol 1980 Oct;135(4):843–5.   [CrossRef]   [Pubmed]    Back to citation no. 2
  3. Yasuda M, Niina Y, Uchida M, Fujimori N, Nakamura T, Oono T, et al. A case of lipomatous pseudohypertrophy of the pancreas diagnosed by typical imaging. JOP 2010 Jul 5;11(4):385–8.   [Pubmed]    Back to citation no. 3
  4. Shimada M, Shibahara K, Kitamura H, Demura Y, Hada M, Takehara A, et al. Lipomatous Pseudohypertrophy of the Pancreas Taking the Form of Huge Massive Lesion of the Pancreatic Head. Case Rep Gastroenterol 2010 Oct 22;4(3):457–64.   [CrossRef]   [Pubmed]    Back to citation no. 4
  5. Izumi S, Nakamura S, Tokumo M, Mano S. A minute pancreatic ductal adenocarcinoma with lipomatous pseudohypertrophy of the pancreas. JOP 2011 Sep 9;12(5):464–8.   [Pubmed]    Back to citation no. 5
  6. Sodhi KS, Vyas S, Khandelwa N, Gupta R. Complete pancreatic lipomatosis. Indian J Gastroenterol 2010 Mar;29(2):65.   [CrossRef]   [Pubmed]    Back to citation no. 6
  7. Lin WC1, Chen JH, Lin CH, Shen WC. Rapidly progressive pancreatic lipomatosis in a young adult patient with transfusion-dependent myelodysplastic syndrome. J Formos Med Assoc 2007 Aug;106(8):676–9.   [CrossRef]   [Pubmed]    Back to citation no. 7
  8. Toyama N, Kamiyama H, Suminaga Y, Namai K, Ota M, Konishi F. Pancreas head carcinoma with total fat replacement of the dorsal exocrine pancreas. J Gastroenterol 2004 Jan;39(1):76–80.   [Pubmed]    Back to citation no. 8
